Agriculture Tripod Ladder Aluminum Welded

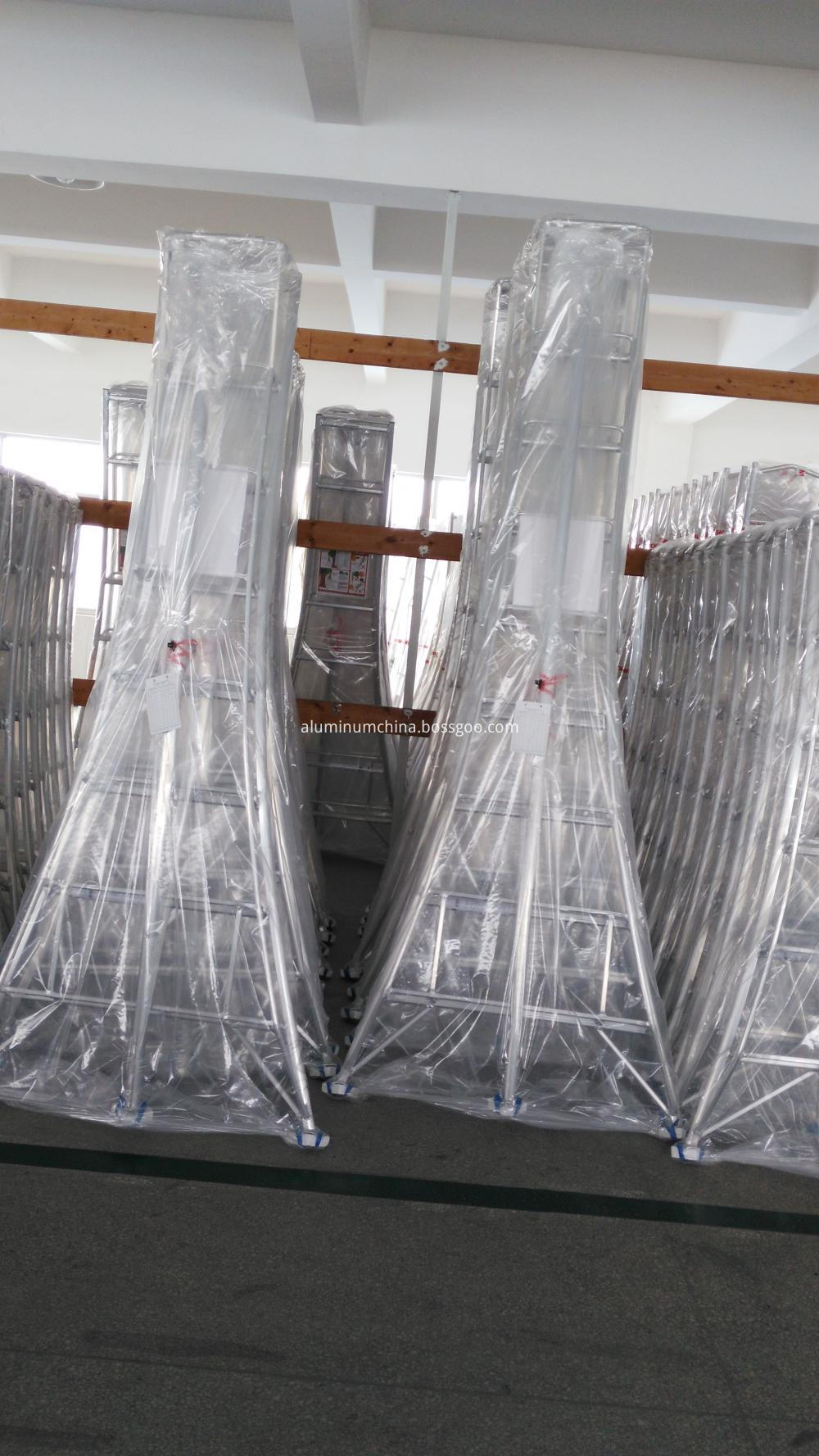

- plastic bag or customized
- Place of Origin:
- Suzhou, China
- Supply Ability:
Model No.: GMK-360A

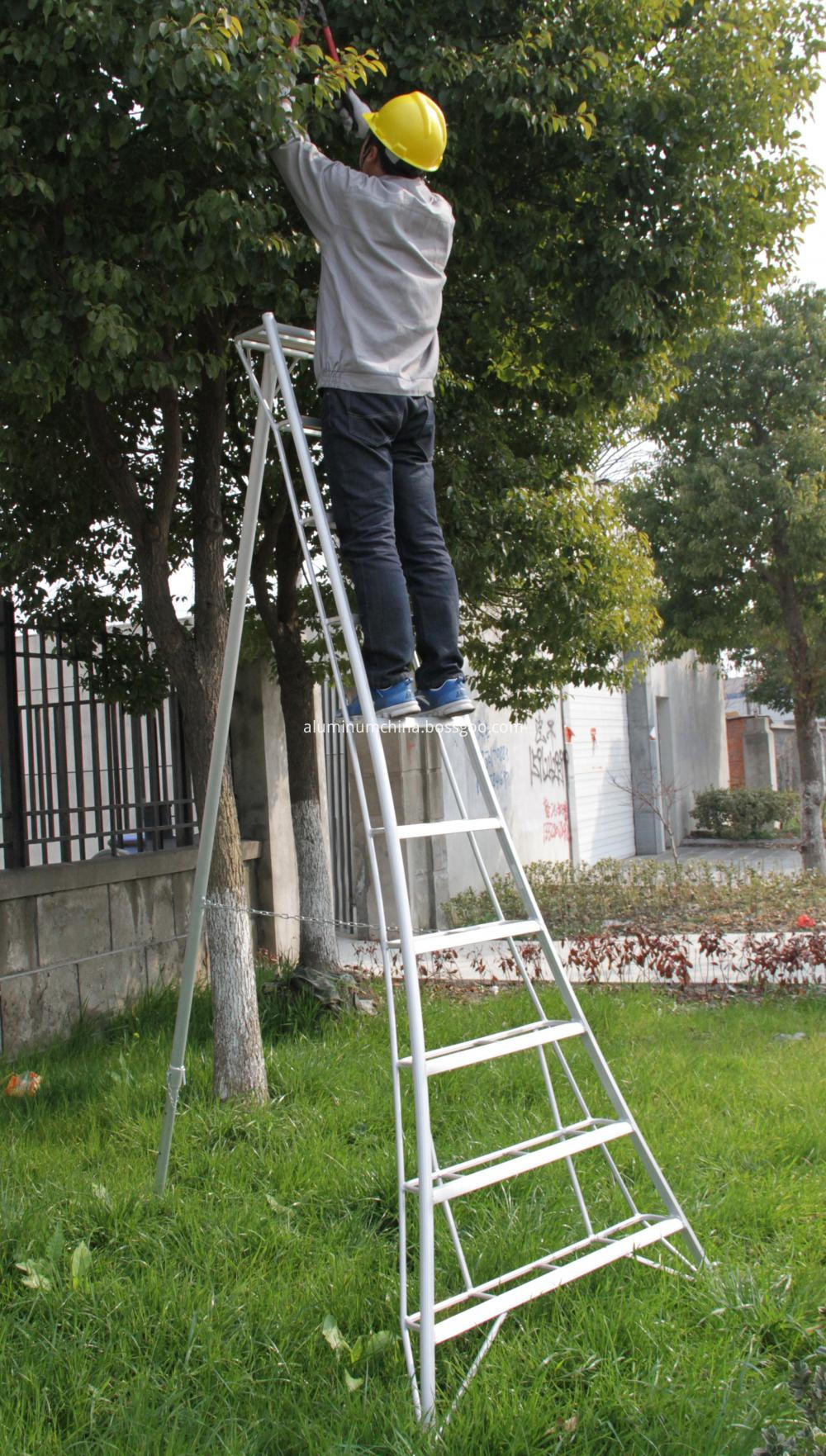

Tripod ladders are widely used for fruit harvest, pruning, all connection parts are firmly welded processing welding structure, more durable and strong than the ladder assembled in riveting process. Anti-sliped step is wide, easy to stand and very safe.
There is a extensible back pole which is adjustable with a spring bolt limit. The feet are anti-slip with claws to enhance the grip to the floor. Unlike traditional orchard designs (pointed A-Frame), you can lean over the top, or rest picking baskets etc on top. They're also considerably wider at the base than A-Frames.
- Main material: Aluminum Alloy A6063-T5
- All connection parts are firmly welded processing Welding structure
- Wide step, easy to stand, Strong and light
- Extensible back pole is adjustable with the spring bolt limit.
- As the stretching, connection set (such as chains, pothook, circle,etc)
- Anti-slip foot with claws
- Max working load: 100kg
|Model||Dimension mm||Layer||Weight kg|
|GMK-90A||H871 W726 D704||3||3.3|
|GMK-120A||H1161 W726 D859||4||4.0|
|GMK-150A||H1451 W894 D1014||5||4.9|
|GMK-180A||H1741 W894 D1170||6||5.6|
|GMK-210A||H2030 W1102 D1325||7||6.7|
|GMK-240A||H2320 W1102 D1325||8||7.4|
|GMK-270A||H2610 W1102 D1480||9||8.2|
|GMK-300A||H2900 W1320 D1791||10||9.4|
|GMK-330A||H3190 W1320 D1946||11||10.2|
|GMK-360A||H3479 W1320 D2101||12||10.9|
Contact us if you need more details on Tripod Ladder Agriculture. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Agriculture Ladder Welded、Welded Agriculture Ladder. If these products fail to match your need, please contact us and we would like to provide relevant information.
